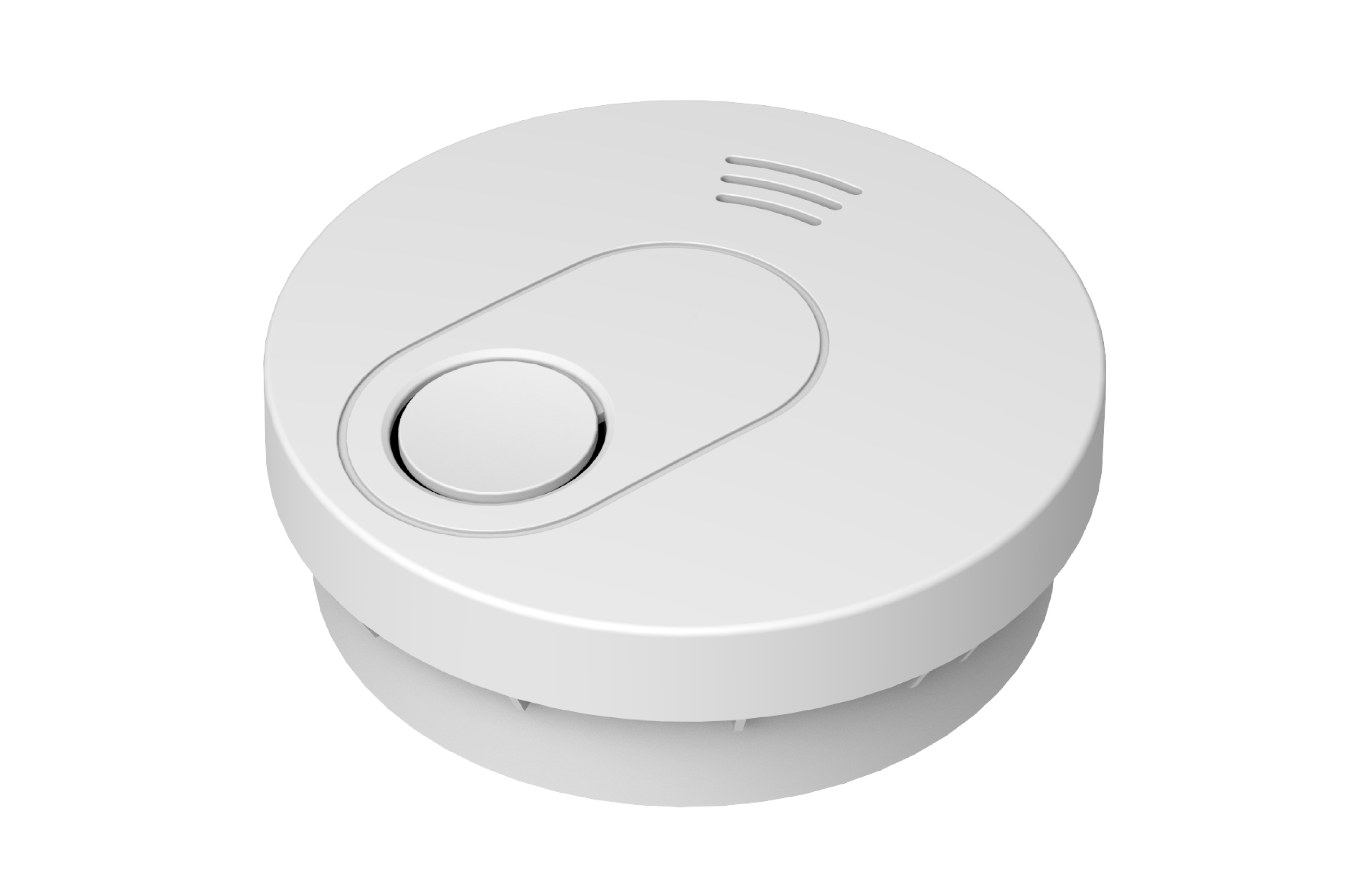

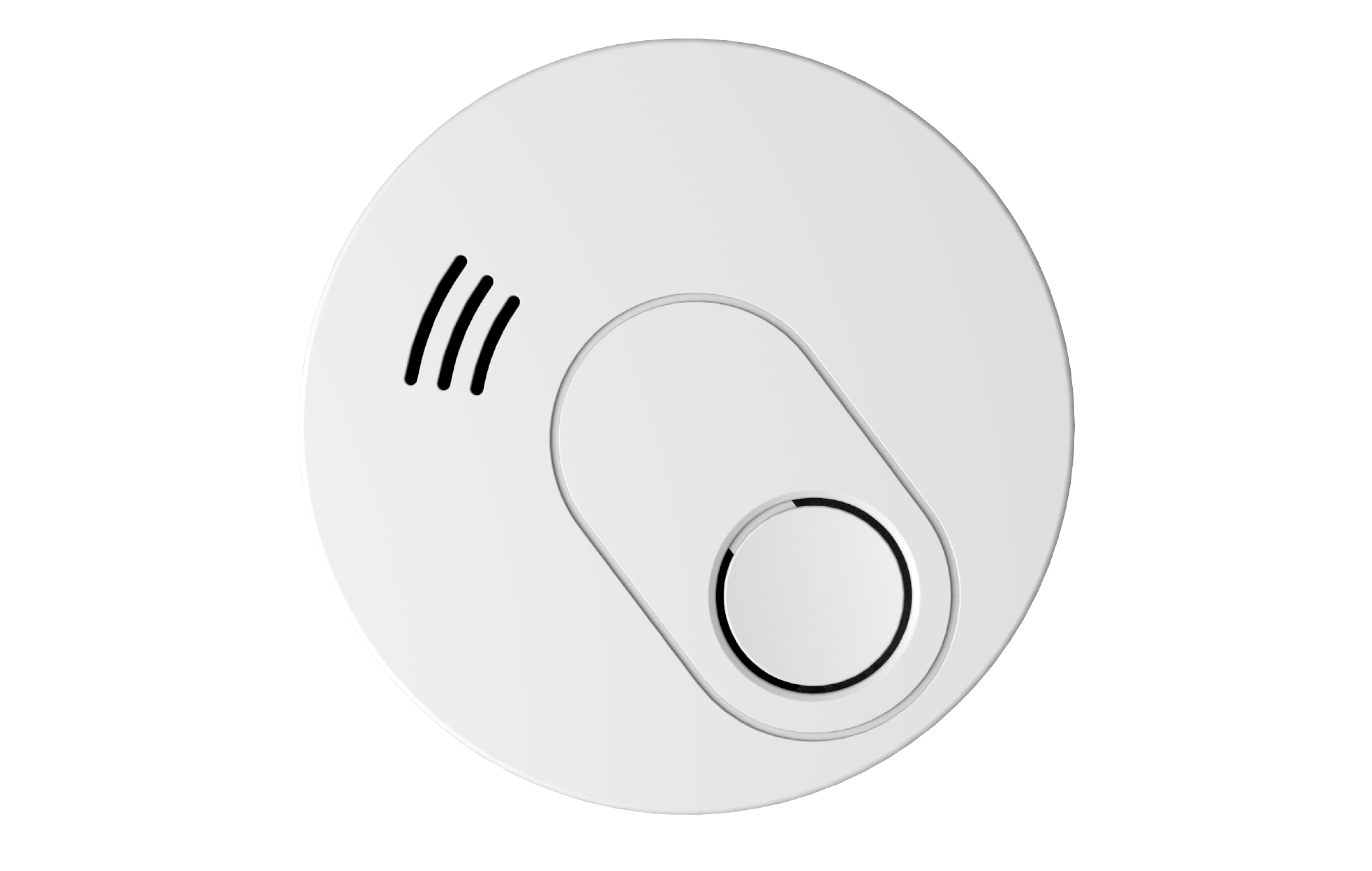

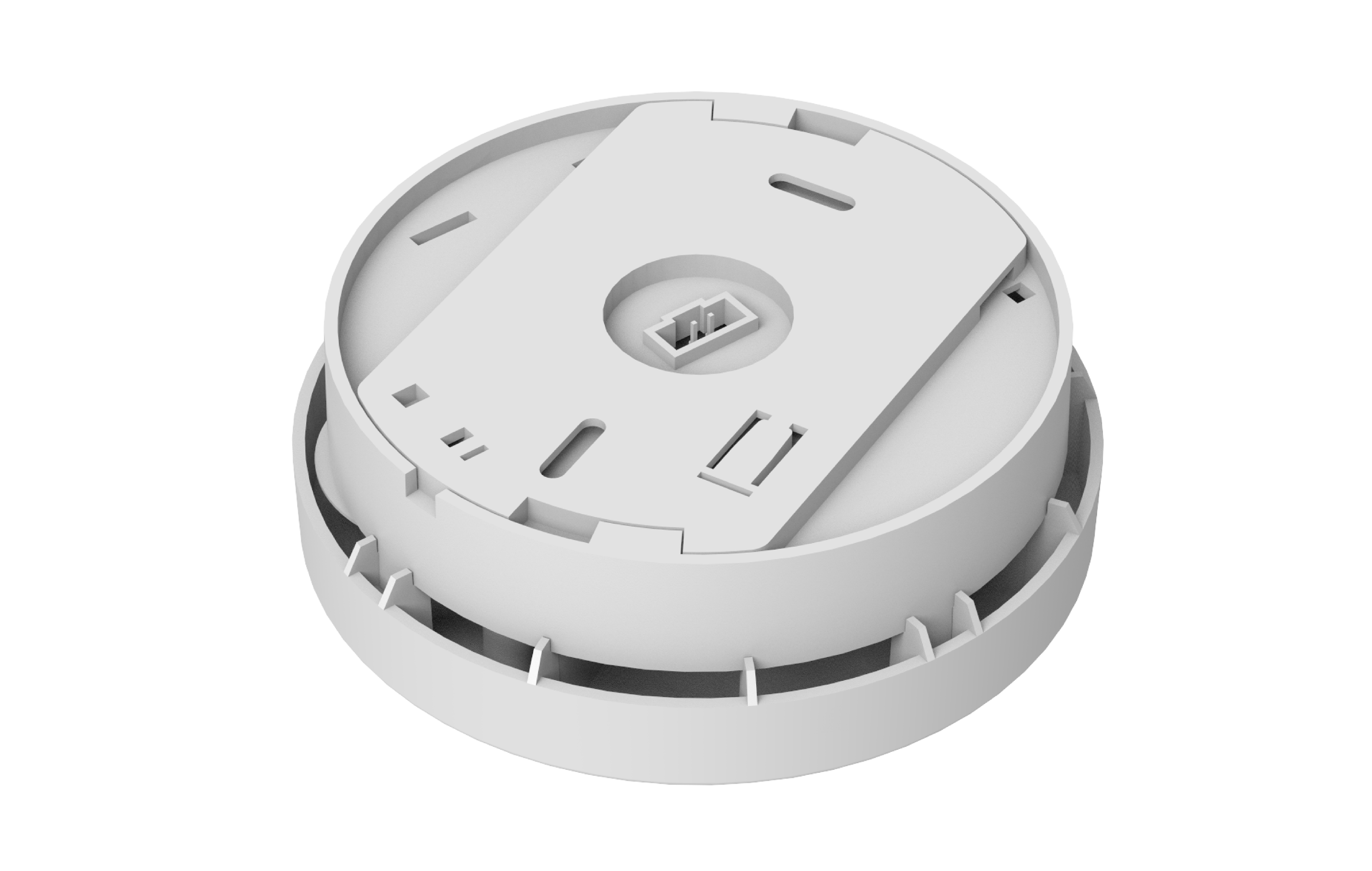

GS526A

Smoke Alarm

Powered by a sealed CR2/3AZ lithium battery, the GS526A delivers a full 10-year battery service life without the need for battery replacement. The alarm combines clear audible and visual warnings with practical Test, Hush, and No-Disturb functions, helping users maintain protection with less day-to-day interruption. When sensor performance declines or the product reaches the end of its service life, the alarm provides a warning signal to remind users that the complete unit must be replaced.

Bullet Points

Photoelectric Smoke Sensing

Photoelectric technology is designed to respond effectively to slow, smoldering fires that typically generate thick, dark smoke before visible flames appear. The sensing design does not contain radioactive material.

10-Year Sealed Lithium Battery

A built-in CR2/3AZ lithium battery provides up to 10 years of power. The sealed battery design eliminates routine battery replacement and supports long-term, maintenance-friendly home protection.

One-Touch Test & Hush

The integrated Test button enables simple weekly function checks, while the Hush function temporarily silences an alarm for approximately 10 minutes when appropriate.

No-Disturb Function

During low-battery or fault warnings, pressing the Test button temporarily silences the warning chirp for up to 10 hours. The warning automatically resumes afterward to ensure the required maintenance is not overlooked.

Clear Audible & Visual Alerts

A pulsating ISO 8201 alarm pattern and a flashing red LED provide clear warning when smoke reaches the alarm threshold. With an alarm volume of more than 85 dB(A) at 3 meters, the GS526A delivers an attention-grabbing local alert.

Intelligent Status Indication

The red LED flashes once every 40 seconds in normal standby mode, flashes once per second during an alarm, and flashes once every 8 seconds during Hush mode, making the unit status easy to recognize.

Fault & End-of-Life Reminder

The alarm monitors its detection performance and provides a fault indication when sensor performance falls below the required threshold. A low-battery or end-of-life warning reminds users to replace the complete sealed alarm promptly.

Key Specifications

Model	GS526A
Product Type	Photoelectric Smoke Alarm
Operation Type	Standalone
Power Source	DC 3V
Battery Type	1 × Built-in CR2/3AZ Lithium Battery
Battery Replacement	Non-Replaceable / Sealed Battery Design
Battery Service Life	10 Years
Sensor Type	Photoelectric
Smoke Alarm Sensitivity	1.0–2.52 %/ft. OBS
Quiescent Current	< 4 μA
Alarm Current	< 80 mA
Alarm Volume	> 85 dB(A) at 3 m
Sound Pattern	ISO 8201
Hush Time	Approximately 10 Minutes
No-Disturb Silence Time	10 Hours for Low-Battery or Fault Warning
Status Indicator	Red LED
Operating Temperature	0°C to 40°C
Operating Humidity	< 95% RH
Dimensions	Ø100 × 34 mm
Safety Standards	UL 217:2006 & CAN/ULC-S531:2011

Usage Scenarios

Protection Through the Night

The 10-year sealed battery design provides uninterrupted smoke detection for bedrooms and nearby sleeping areas, while the No-Disturb function can temporarily mute low-battery or fault chirps overnight without disabling the alarm’s protection.

Early Warning Along Escape Routes

Install the GS526A in hallways and circulation areas to help provide early warning along key exit routes. Its clear audible alarm and visible LED indication support fast recognition of a smoke event.

Everyday Home Fire Protection

The compact, standalone design is suitable for living rooms, dining areas, and other common household spaces where reliable photoelectric smoke detection can support everyday family safety.

Bedroom Safety

Hallways

Living Areas

Why Siterwell

With over a decade of expertise in IoT and safety technology, Siterwell partners with businesses worldwide to create smarter, safer living environments.

Backed by strong R&D capability, global certifications, and a 56,000 m² production base, we deliver both innovation and reliable large-scale manufacturing.
From award-winning designs to proven global delivery across Asia, Europe, and the US, we focus on building long-term partnerships that drive mutual growth and success.
