PIR Sensor
GS307Z
GS307Z
Water Leak Alarm

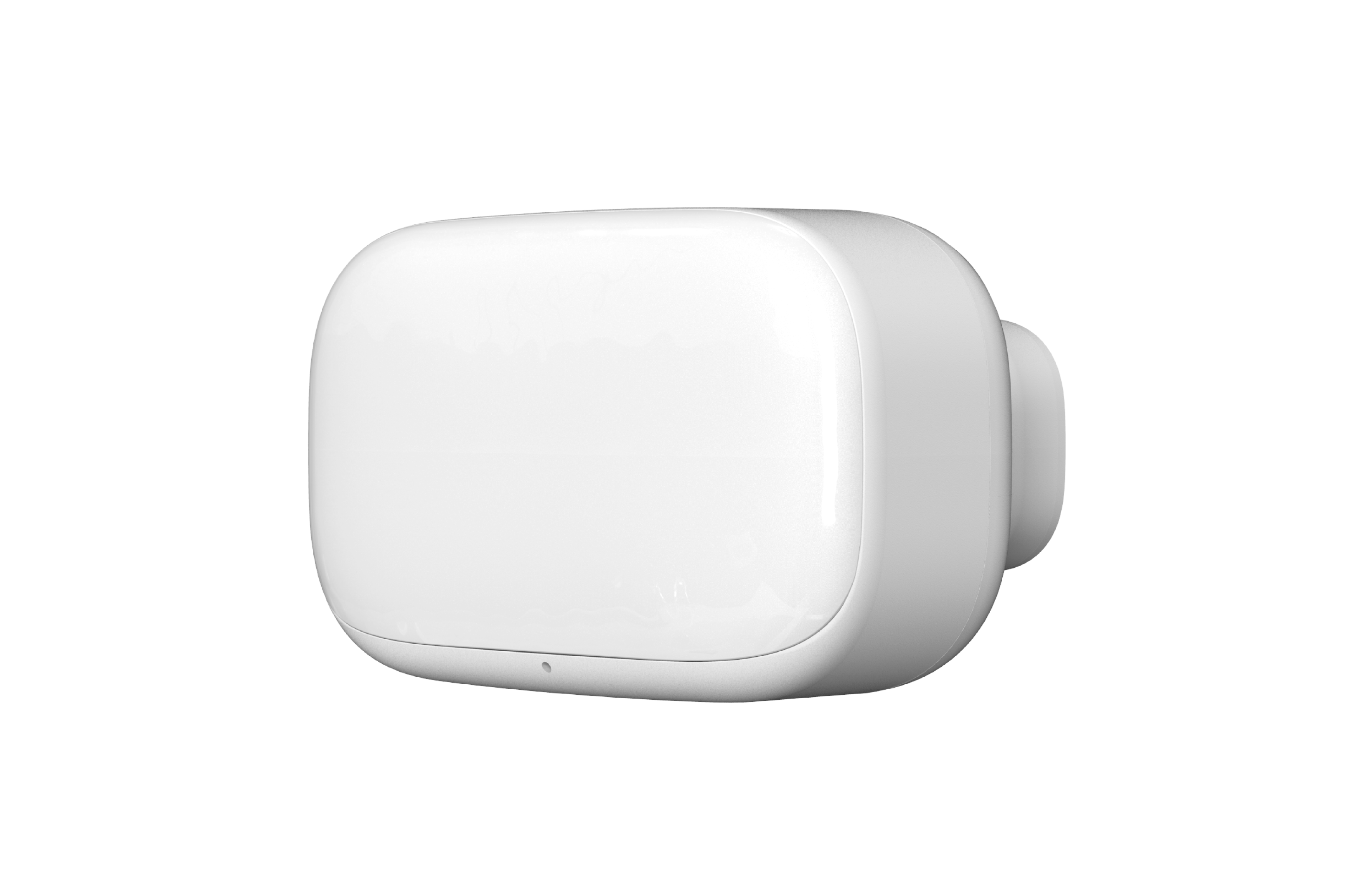

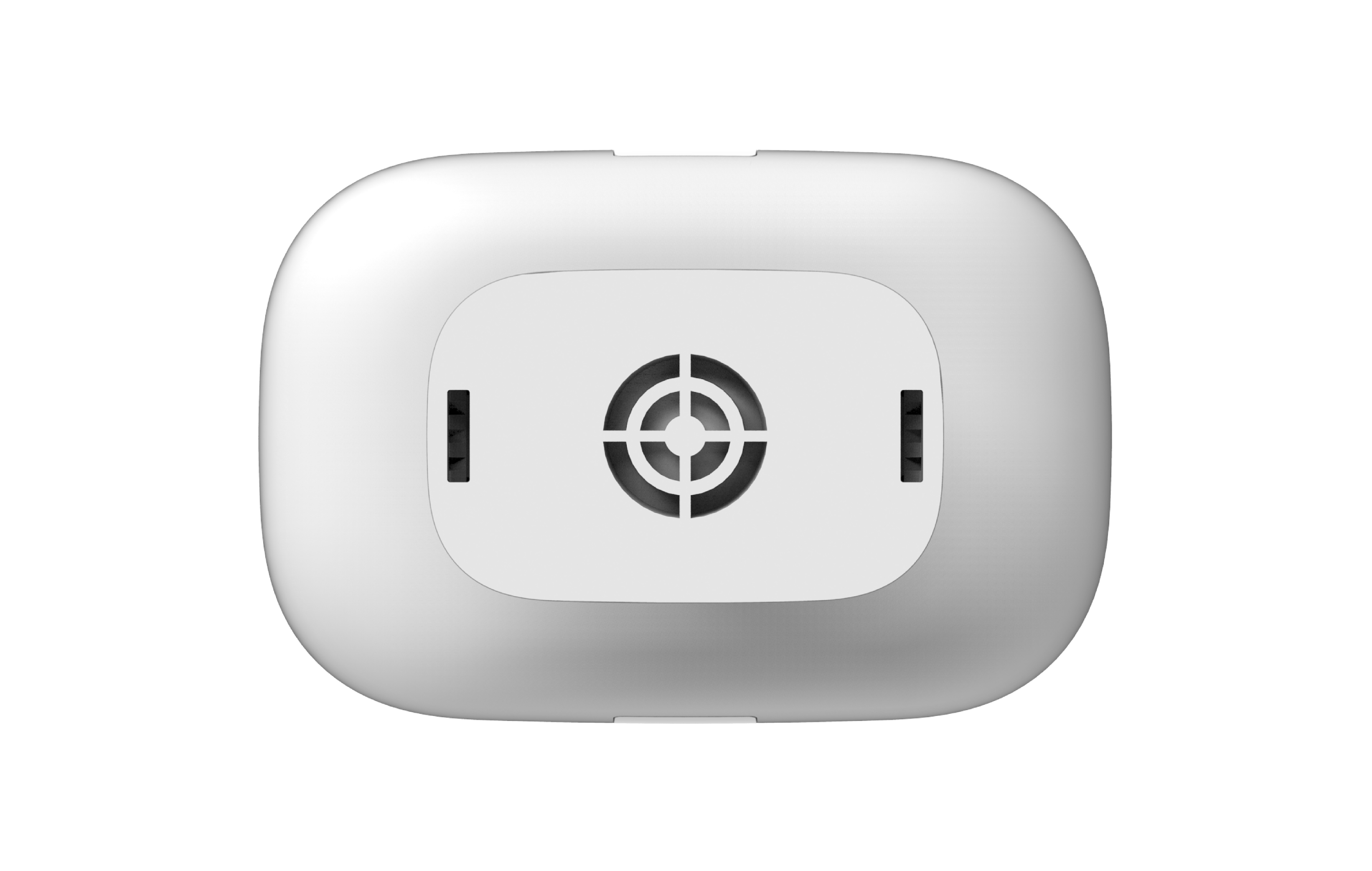

The GS307Z is a highly efficient smart motion detector featuring a built-in Tuya ZTU ZigBee module. Designed for seamless integration with ZigBee smart home gateways, it uses a premium Nicera pyroelectric infrared (PIR) sensor to accurately detect human movement within a 4 to 8-meter range. Powered by two standard AAA batteries, it is engineered for high-traffic areas, providing up to 1 year of reliable battery life even with up to 30 triggers per day.
Bullet Points
Key Specifications
| Power Supply | 2x AAA (3.0V) batteries |
| Standby Current | < 15μA |
| Trigger Current | Max 30mA |
| Battery Life | 1 Year (30 triggers per day) |
| Wireless Technology | ZigBee |
| Wireless Frequency | 2.4GHz |
| Sensor Type | Nicera PIR (RE200F) |
| Detection Angle | 100掳 Horizontal / 80掳 Vertical |
| Detection Distance | 4 - 8 meters |
| Operating Temperature | 0°C to 50°C |
| Humidity Range | 10% - 90% RH |
| Dimension | 61mm x 41mm x 52.6mm |
| Compliance Standard | SGS CE (RED, EMC/LVD EN62368-1), RoHS |
Usage Scenarios

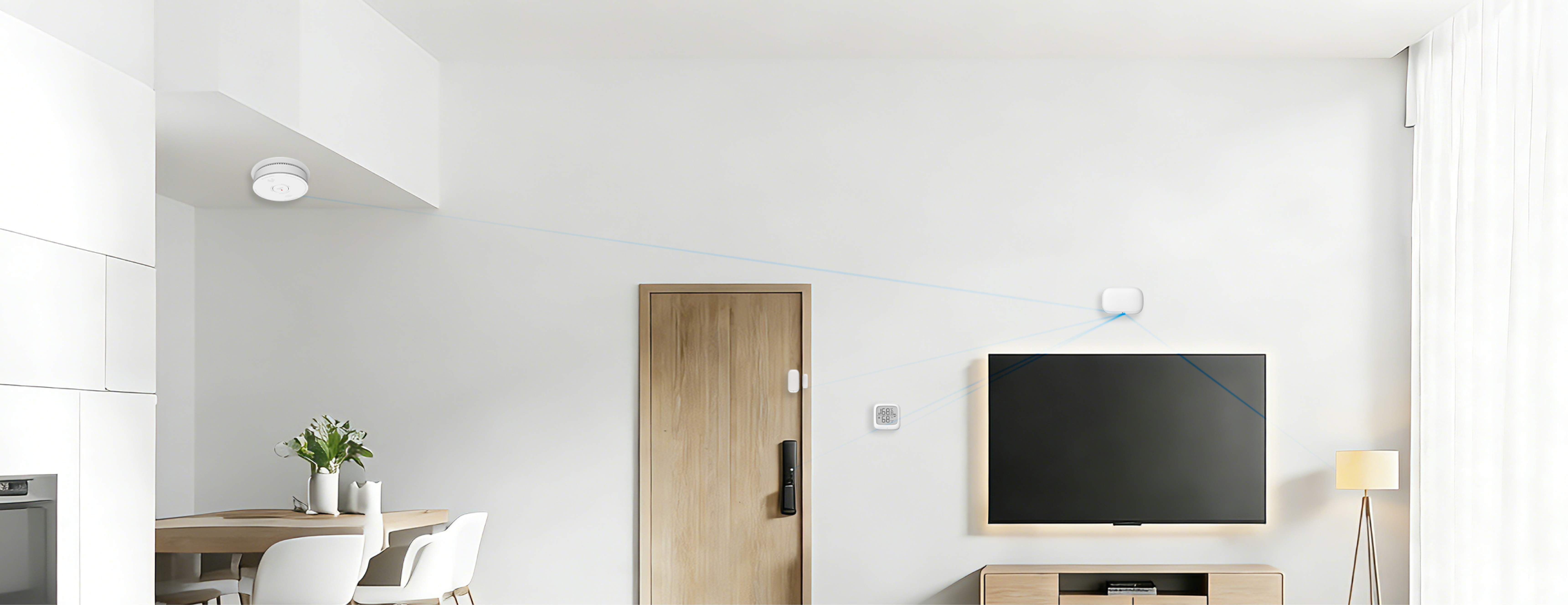

Living Area Monitoring
Ideal for monitoring large living spaces, instantly alerting you to unexpected movement when you are away from home.
Hallway Security
Perfect for installation in corridors and entryways to detect intruders moving between rooms.
Smart Home Automation
Can be linked with other smart devices to automatically turn on lights or adjust thermostats when you enter a room.
Why Siterwell
With over a decade of expertise in IoT and safety technology, Siterwell partners with businesses worldwide to create smarter, safer living environments.
Backed by strong R&D capability, global certifications, and a 56,000 m² production base, we deliver both innovation and reliable large-scale manufacturing.
From award-winning designs to proven global delivery across Asia, Europe, and the US, we focus on building long-term partnerships that drive mutual growth and success.
